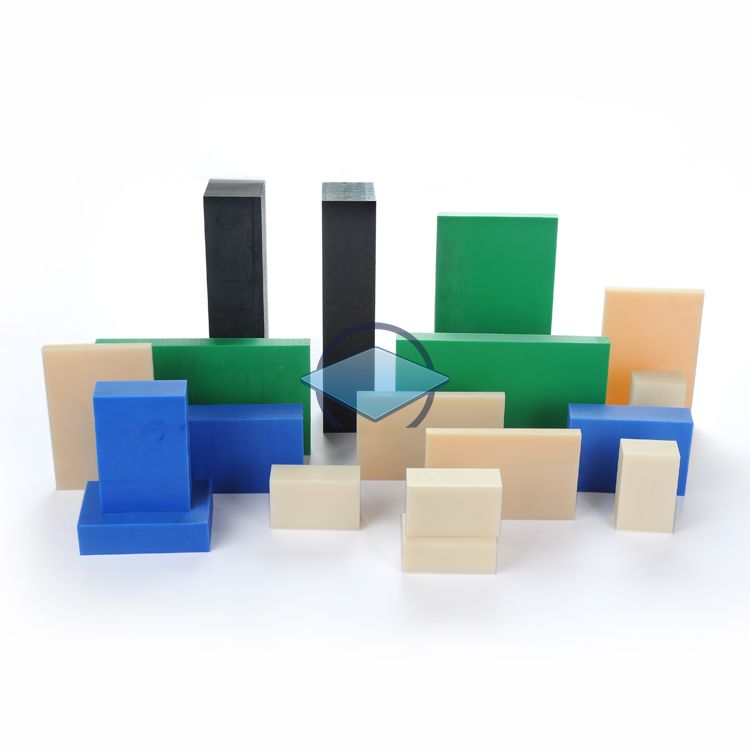

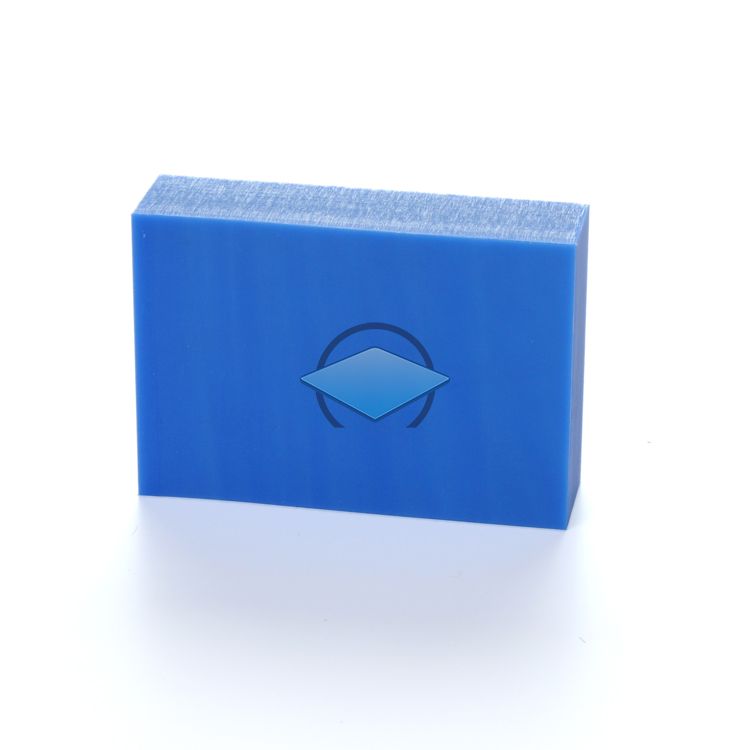

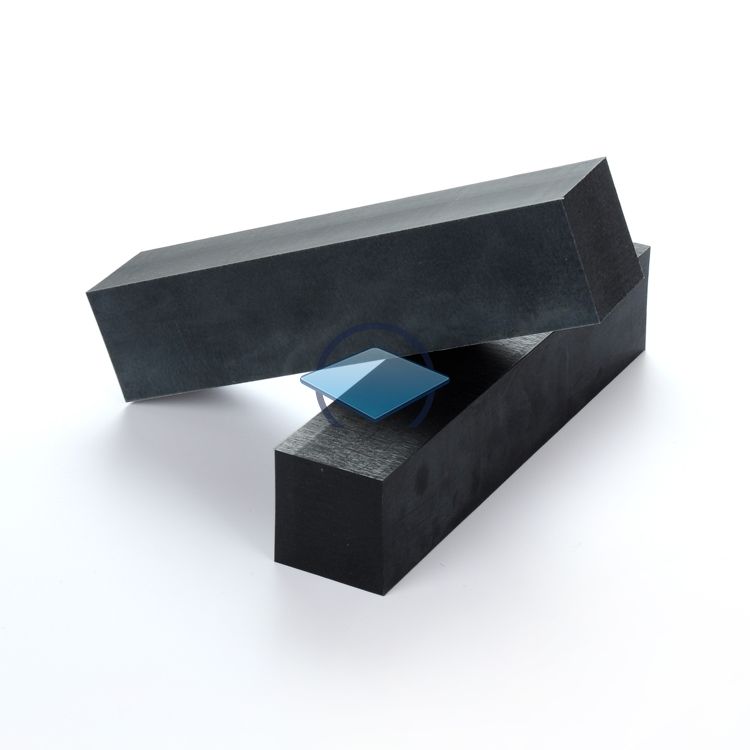

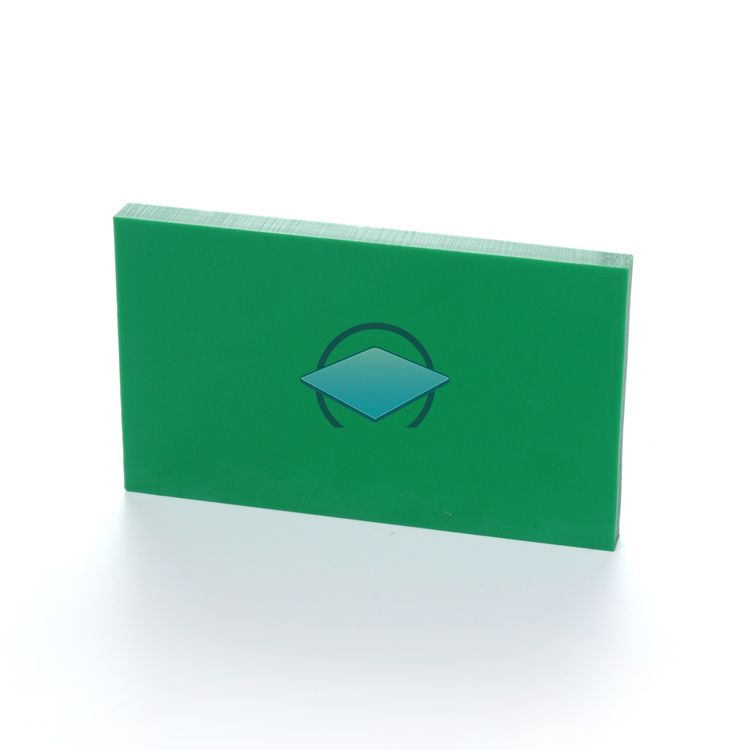

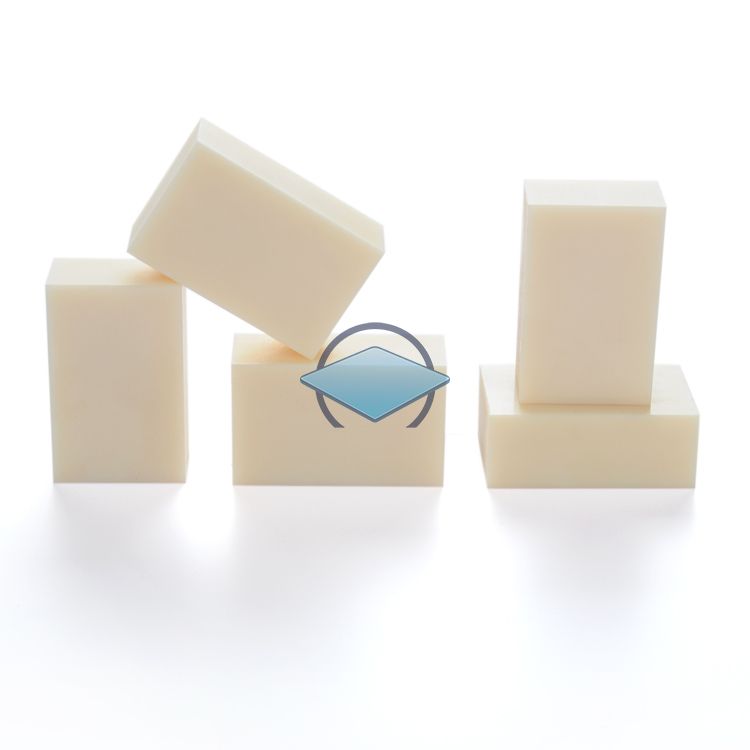

Product Name: High Density Polyethylene Sheet, HDPE Plastic Sheet
**I. Manufacturing Process and Workflow**
1. **Raw Materials:** HDPE granules
2. **Process:** Extrusion process
3. **Workflow:** Mixing → Feeding → Heating and plasticizing → Extrusion molding
→ Cooling → Cutting → Packaging
4. **Packaging:** Surface (front side or both sides) covered with PE protective film;
packed on wooden pallets; maximum weight per pallet does not exceed 2.5 tons.
**II. Appearance and Color**
* **Color:** Customizable
**III. Specifications**
1. **Thickness Range:** 3-30mm
* Thickness tolerance for 3-20mm sheets: +0.03 + 3% / -0
* Thickness tolerance for 20-30mm sheets: +0.05 + 5% / -0
2. **Width:** 1000-2000mm
* Length, width, and diagonal tolerance: ±5mm
3. **Length:** Customizable lengths available.
4. **Standard Sizes:**
* 1000 × 2000mm
* 1220 × 2440mm
* 1300 × 3000mm
* 1500 × 3000mm
* 2000 × 3000mm
5. **Weight Calculation:** Thickness (mm) × Length (mm) × Width (m) × Density = Theoretical Weight (KG)
**IV. Product Classification**
Based on different manufacturing processes and raw materials, HDPE sheets are categorized as follows:
1. **High-Density Polyethylene Sheet:** Density 0.96 - 0.98 g/cm³
**V. Chemical Resistance**
* Suitable for general acidic, alkaline, saline solutions, and organic solvents (especially active solvents).
However, it will be corroded by chemicals such as chlorinated solvents, aliphatic hydrocarbons,
and aromatic hydrocarbons. Not suitable for concentrated nitric acid, chromic acid, etc.
**VI. Food Contact Performance**
* **Food-grade material**, suitable for direct contact with food and pharmaceuticals.
**VII. Product Characteristics**
1. Excellent toughness and dimensional stability.
2. Reliable insulation performance, good heat resistance.
3. Resistant to acids, alkalis, and chemical corrosion.
4. Easy to process, excellent welding performance.
5. Non-toxic, environmentally friendly, durable.
**VIII. Processing Performance**
1. **Cutting Tools:** Wide-tooth table saws, woodworking saws, hand saws, CNC engraving machines,
etc. Cutting sheets thicker than 30mm requires water cooling.
2. **Processing Methods:** Hot melt welding, thermoforming, drilling, punching, engraving, etc.
3. **Processing Tools:** Specialized hot air welding guns for plastic welding, welding machines,
butt welding machines, bending machines.
**IX. Product Applications**
Used in components for medical devices, seals, cutting boards, sliding profiles.
Widely used in industries such as chemical,
machinery, electrical power, clothing, packaging, food, environmental protection,
and textiles. Extensively used in gas transmission, water supply, sewage, agricultural irrigation,
transportation of fine solid particles in mines, as well as in oil fields, chemical industry,
and postal and telecommunications fields. It is particularly widely used in gas transmission applications.
